• Delay Off Function
  • Butterfly Wing Ring Suction
  • European Style Range Hood
Setting a new standard with ring suction that breaks away from tradition
Product Details
Wing-liked surround suction technology FOTILE W implements the innovative innovative “smart wing-like surround suction plate” that offers super strong 3D suction and extraction effect by wider fume control range and accelerated fume inlet, achieving no escape of fumes.
Easy and effortless cleaning We understand that the cleaning of the hood has always been a headache. FOTILE W detachable butterfly wing + zinc alloy hook, easy to disassemble and scrub; equipped with zinc alloy hook, corrosion-resistant and more durable.
Smart Life, Innovative Technology Delay Off Function, keeping the hood on for a while longer
Technical Parameters
  • Certification: CB,SAA
  • Product Size (mm)(W×D×H): 900X520X(650-940)
  • Voltage: 220-240V 50/60Hz
  • Noise Level (dB): ≤52
  • Illumination Power (W*1): 2(LED)
  • Air Flow (m³/h): 1200
  • Motor Power (W): 200
  • Filter: Corrugated Filter
  • Gas Sensor: N
  • Heat Sensor: N
  • Wind Curtain: N
  • Auto Turbo System: N
  • Intelligent Air Management: N
  • Smoke Sound Detection: N
  • Anion Sterilization: N
  • Central Energy Cursor: N
  • Net Weight (kg): 30

  • Gross Weight (kg): 37.2

  • Packing-Box Size (mm): 990X705X614

  • Volume (m³): 0.44

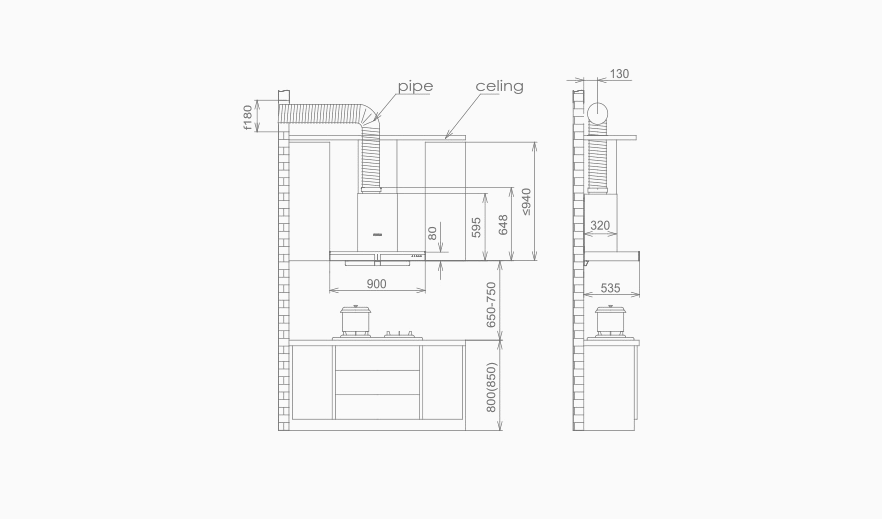

Installation Diagram
Wind tunnel installation ceiling installation diagram (unit: mm)
